JTL bimetal Copper-aluminum connecting clamp
Material：Copper Aluminum
The lugs are meticulously crafted from high-conductivity annealed copper, ensuring the best electrical performance. Composed of 99.9% pure copper, these lugs boast exceptional conductivity.

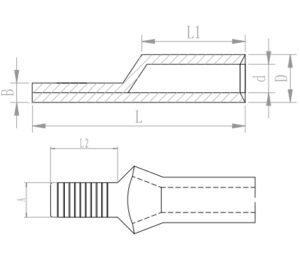

| Catalog No | Dimensions(mm) | ||||||
| D | d | L | L1 | L2 | A | B | |
| 4 | 5 | 4 | 22.7 | 6 | 10 | 5.2 | 1 |
| 6 | 5.5 | 4.5 | 25 | 14 | 10 | 5.2 | 1 |
| 10 | 6 | 5 | 28.7 | 15 | 12 | 6.3 | 1 |
| 16 | 8 | 6.4 | 32.5 | 19.2 | 12 | 7.2 | 2 |
| 25 | 9 | 7.2 | 36 | 21.5 | 12 | 6.8 | 2 |
| 35 | 11 | 9.2 | 36 | 21 | 12 | 6.8 | 2.1 |
| 50 | 12.5 | 10.7 | 41 | 21 | 12 | 6.8 | 1.8 |
| 70 | 15 | 12.4 | 45 | 20 | 12 | 8.3 | 2.6 |
| 95 | 16 | 13.2 | 47.5 | 24.5 | 15.8 | 10.5 | 2.8 |
| 120 | 18 | 14.8 | 54 | 26.5 | 15.8 | 10.5 | 3.2 |
