MOQ:1000pcs
Product: BDV Blade Type Pre-insulated Terminal
Material: Brass/Copper; PVC
Surface coating: Tin plating
Applicable Conductor Cross-Section: 0.5~6mm²
Rated Current: Max24A
Operating Temperature: -10°C ~ 75°C
Installation Method: Crimping
Reference Standard:GB/T 13140.1-2008；IEC 61984

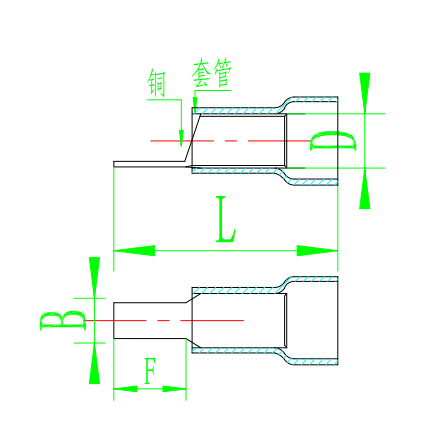

| Catalog No |
Dimensions(mm) | Color | |||
| B | L | F | D | ||
| DBV1.25-10 | 2.3 | 20.0 | 10.0 | Red | |
| DBV1.25-11 | 3.0 | 21.0 | 11.0 | 4.3 | |
| DBV1.25-14 | 3.0 | 24.0 | 14.0 | 4.3 | |
| DBV1.25-18 | 2.2 | 28.0 | 18.0 | ||
| DBV2-9 | 2.8 | 19.0 | 9.0 | Blue | |
| DBV2-10 | 2.4 | 20.0 | 10.0 | 4.9 | |
| DBV2-14 | 2.4 | 24.0 | 14.0 | ||
| DBV2-18 | 2.2 | 28.0 | 18.0 | ||
| DBV5.5-10 | 2.8 | 22.5 | 10.0 | Yellow | |
| DBV5.5-14 | 4.5 | 26.5 | 14.0 | 5.6 | |
| DBV5.5-18 | 4.5 | 30.5 | 18.0 | ||
