JTL bimetal Copper-aluminum connecting clamp
Material：Copper Aluminum

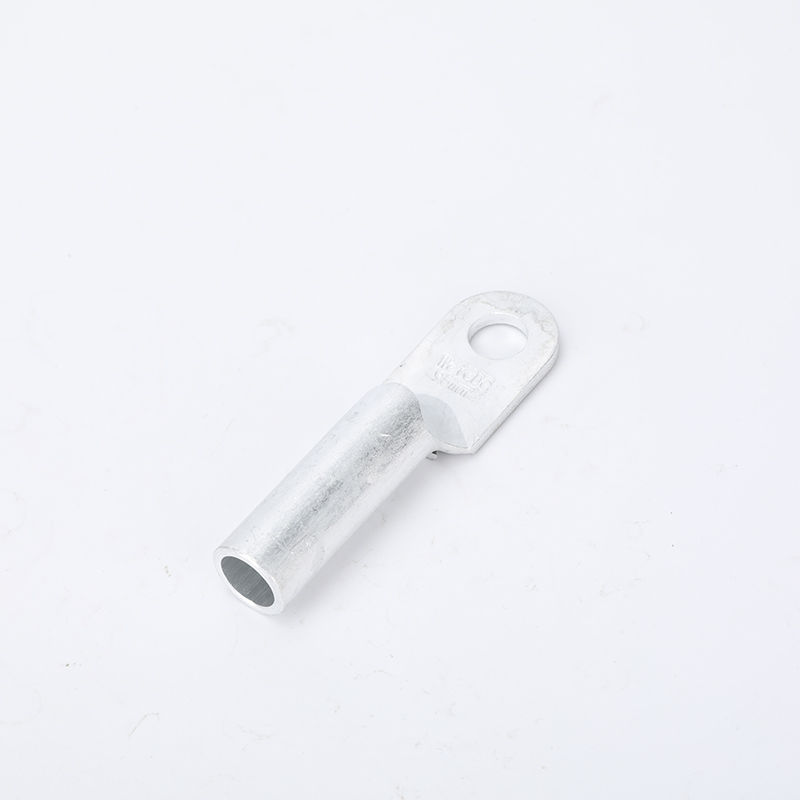

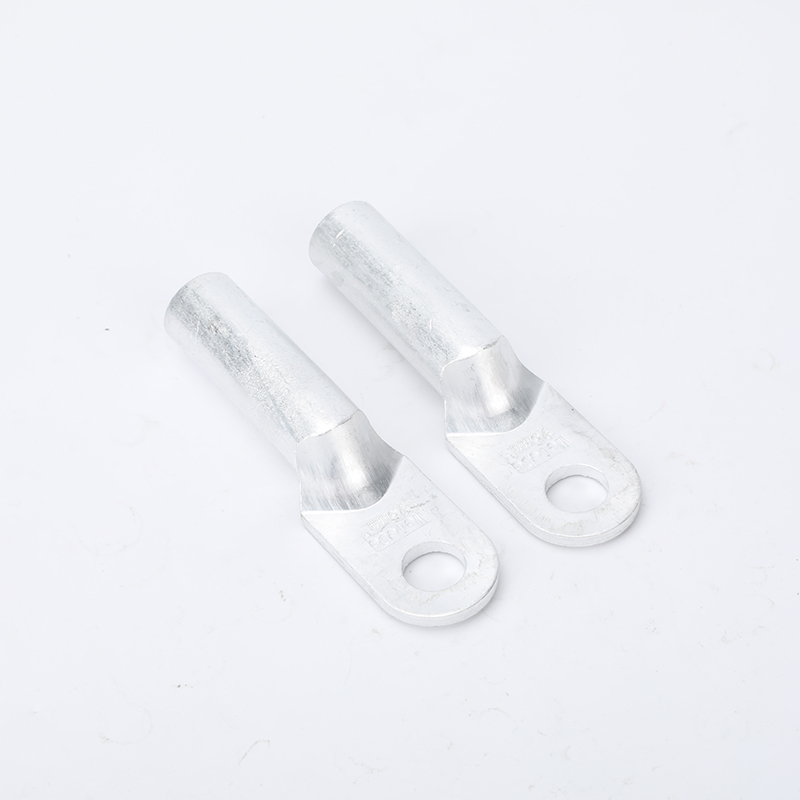

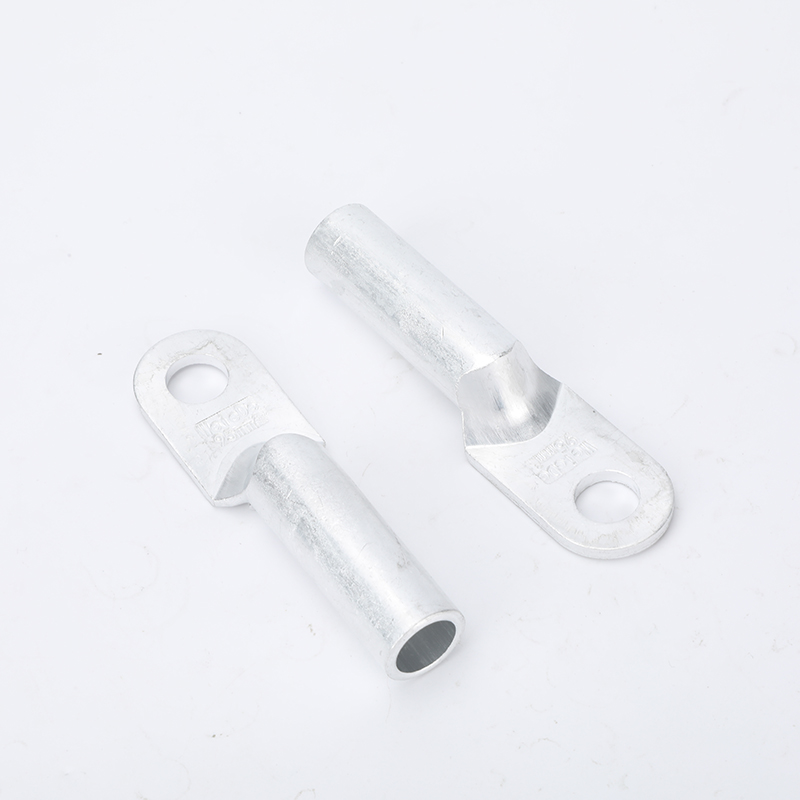

The aluminum crimp lugs are made from high-quality aluminum, manufactured through precision engineering. The lug barrels are filled with a specialized compound, effectively eliminating oxidation on the aluminum surface.

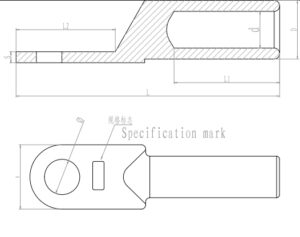

| Catalog No | Dimensions(mm) | |||||||
| Ø | D | d | L1 | L2 | L | W | S | |
| DL—A—10 | 8.5 | 10 | 5.5 | 31 | 22 | 65 | 16 | 2.3 |
| DL—A—16 | 8.5 | 11 | 6.5 | 33 | 24 | 70 | 16 | 2.4 |
| DL—A—25 | 8.3 | 12 | 7.5 | 35 | 26 | 74 | 18 | 2.8 |
| DL—A—35 | 10.5 | 14 | 8.5 | 44 | 25.5 | 83 | 20 | 3.4 |
| DL—A—50 | 10.5 | 16 | 9.5 | 42 | 29 | 90 | 23 | 3.8 |
| DL—A—70 | 12.5 | 18 | 11.5 | 50 | 30 | 99 | 26 | 4 |
| DL—A—95 | 12.5 | 18 | 13.5 | 55 | 35 | 110 | 28 | 4.7 |
| DL—A—120 | 14.5 | 23 | 15.5 | 52 | 36 | 120 | 30 | 5 |
| DL—A—150 | 14.5 | 25 | 16.5 | 62 | 43.5 | 126 | 34 | 5.8 |
| DL—A—185 | 16.5 | 27 | 18.5 | 63 | 43.5 | 133 | 37 | 6.8 |
| DL—A—240 | 16.5 | 30 | 21 | 66 | 49 | 140 | 40 | 6.6 |
| DL—A—300 | 21 | 34 | 23 | 72 | 58 | 165 | 45 | 8 |

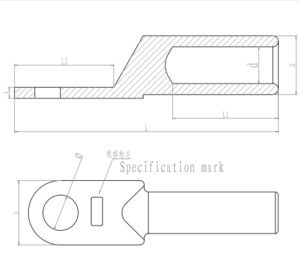

| Catalog No | Dimensions(mm) | |||||||
| Ø | D | d | L1 | L2 | L | B | A | |
| DL-B-10 | 8.5 | 9 | 6 | 31 | 20.5 | 59 | 13 | 2.2 |
| DL-B-16 | 8.5 | 10 | 6.3 | 30 | 22 | 64 | 14.5 | 2.2 |
| DL-B-25 | 8.5 | 11 | 7.5 | 30 | 22 | 68 | 16 | 2.8 |
| DL-B-35 | 10.5 | 12 | 8.5 | 37 | 25 | 71 | 17 | 2.8 |
| DL-B-50 | 10.7 | 14 | 10 | 35 | 27 | 78 | 20 | 3 |
| DL-B-70 | 12.5 | 16 | 11.3 | 43 | 30 | 89 | 23 | 4 |
| DL-B-95 | 12.5 | 18 | 13.5 | 44 | 33 | 97 | 26 | 3.7 |
| DL-B-120 | 14.8 | 20 | 15.3 | 49 | 37 | 103.5 | 28 | 4.2 |
| DL-B-150 | 16.5 | 22 | 17 | 49.5 | 35 | 110 | 30 | 5 |
| DL-B-185 | 16.5 | 24 | 18.5 | 56 | 42 | 118 | 34 | 5 |
| DL-B-240 | 16.5 | 27 | 21 | 58 | 44 | 128 | 32 | 6 |
| DL-B-300 | 20.5 | 30 | 23.5 | 65 | 50 | 174 | 42 | 6.3 |
| DL-B-400 | 22 | 38 | 27.5 | 82 | 60 | 174 | 50 | 8 |
