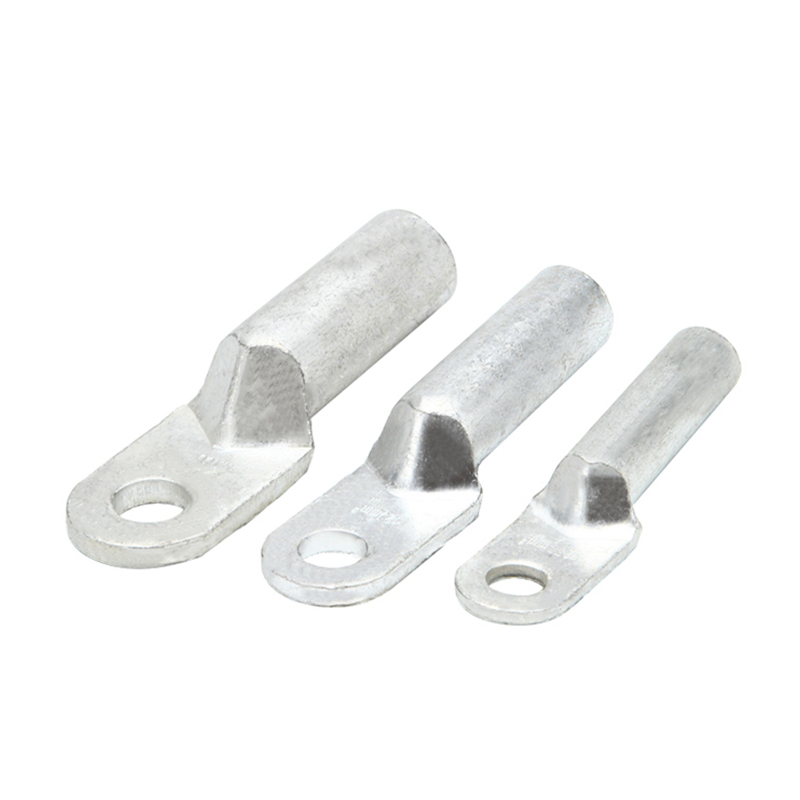

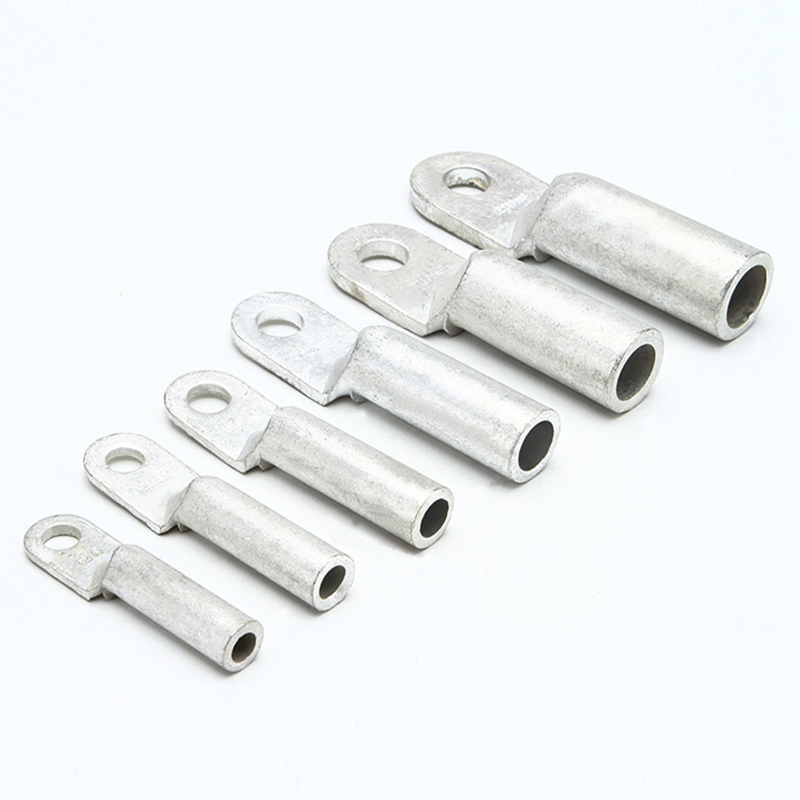

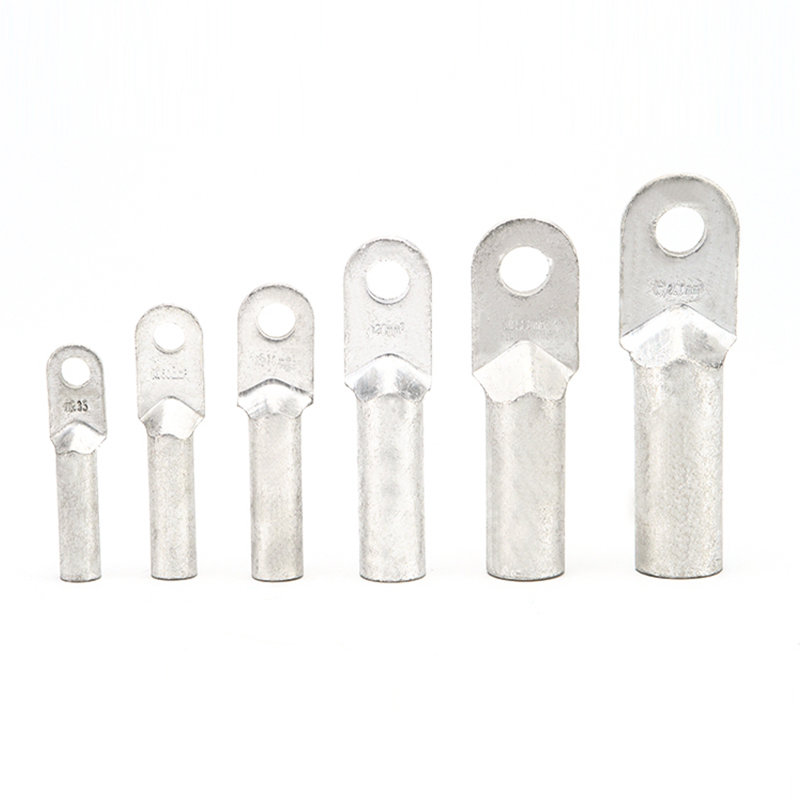

JTL bimetal Copper-aluminum connecting clamp
Material：Copper Aluminum
The aluminum crimp lugs are made from high-quality aluminum, manufactured through precision engineering. The lug barrels are filled with a specialized compound, effectively eliminating oxidation on the aluminum surface.

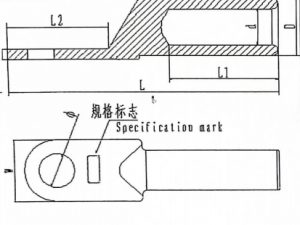

Aluminium connecting terminals
| Catalog No | Dimensions(mm) | |||||||
| Φ | D | d | L1 | L2 | L | W | S | |
| DL-A-10 | 8.5 | 10 | 5 5 J、J | 31 | 22 | 65 | 16 | 2.3 |
| DL-A-16 | 8.5 | 11 | 6.5 | 33 | 24 | 70 | 16 10 | 2.4 |
| DL-A-25 | 8.3 | 12 | 7.5 | 36 | 26 | 75 | 18 | 2.8 |
| DL-A-35 | 10.5 | 14 | 8.5 | 45 | 29 | 85 | 20 | 3.4 |
| DL-A-50 | 10.5 | 16 | 10 | 47 | 32 | 90 | 23 | 3.8 |
| DL-A-70 | 12.5 | 18 | 11.5 | 51 | 35 | 102 | 26 | 4 |
| DL-A-95 | 12.5 | 20 | 13.5 | 55 | 38 | 112 | 28 | 4.7 |
| DL-A-120 | 14.5 | 23 | 15.5 | 58 | 41 | 120 | 30 | 4.8 |
| DL-A-150 | 14.5 | 25 | 16.8 | 58 | 46 | 126 | 34 | 5.8 |
| DL-A-185 | 16.5 | 27 | 18.8 | 62 0 | 46 | 133 | 37 | 6.8 |
| DL-A-240 | 16.5 | 30 | 21 | 66 | 49 | 140 | 40 | 6.6 |
| DL-A-300 | 21 | 34 | 23 | 79 | 58 | 165 | 45 | 8 |
