Product Name: DTF Square Head Copper Cable Lug
Material: Pure Copper
Applicable Conductor Cross-Section: 10~300mm²
Rated Current: 50A~700A
Operating Temperature: -55℃ ~ 150℃
Installation Method: Crimping
Reference Standard: GB/T 14315-2008,IEC61238-1
The DT series copper cable lugs, made from High purity copper, exhibit high conductivity. They are engineered for simple installation, ensuring a reliable and stable connection for all electrical wiring needs, Especially the installation of MCCB and MCB. These lugs are apt for both indoor and outdoor use due to their corrosion-resistant design. Their enduring connection potential makes them a prime selection for any electrical wiring endeavor.
The lugs are meticulously crafted from high-conductivity annealed copper, ensuring the best electrical performance. Composed of 99.9% pure copper, these lugs boast exceptional conductivity.

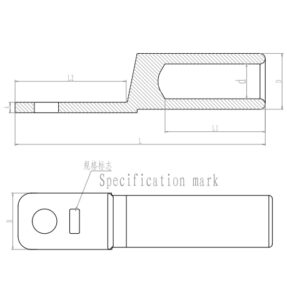

| Catalog No | Dimensions (mm) | |||||||
| Ø | D | d | L1 | L2 | L1 | B | A | |
| DTF-10 | 8.5 | 9 | 5.8 | 28 | 22 | 58 | 14.7 | 2.5 |
| DTF-16 | 8.5 | 10 | 6.8 | 28 | 22 | 58 | 14.7 | 2.5 |
| DTF-25 | 8.5 | 11 | 7.8 | 33 | 22 | 65 | 14.7 | 3.1 |
| DTF-35 | 8.5 | 12 | 8.8 | 33 | 22 | 66 | 14.7 | 3 |
| DTF-50 | 10.5 | 14 | 10 | 38 | 25.5 | 73 | 15.7 | 4 |
| DTF-70 | 12.5 | 16 | 11.8 | 46 | 29 | 85 | 19.7 | 4.3 |
| DTF-95 | 12.5 | 18 | 13.6 | 46 | 29 | 85 | 19.7 | 5 |
| DTF-120 | 14.5 | 20 | 15.5 | 54 | 32 | 99 | 23.7 | 5 |
| DTF-150 | 14.5 | 22 | 16.8 | 55 | 32 | 101 | 23.7 | 6 |
| DTF-185 | 16.5 | 25 | 18.8 | 56 | 38 | 109 | 25.7 | 7.1 |
| DTF-240 | 16.5 | 27 | 21.5 | 59 | 38 | 111 | 25.7 | 7.2 |
