DTL-2 Bimetallic Copper-aluminium Cable Lug
Material: Copper&Aluminium
MOQ:100pcs
Product Name:DTLX Small Head Bimetallic Cable Lug
Material: Copper&Aluminium
Applicable Conductor Cross-Section: 35~300mm²
Rated Current: 150A~700A
Operating Temperature: -40℃ to 150℃
Installation Method: Crimping
Reference Standard: GB/T 14315-2008,IEC61238-1

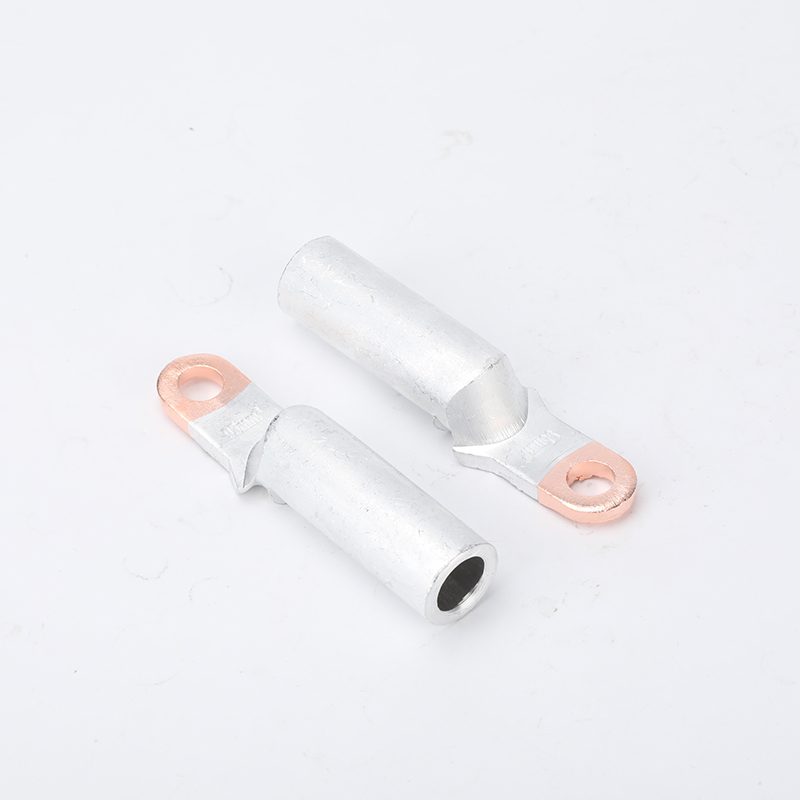

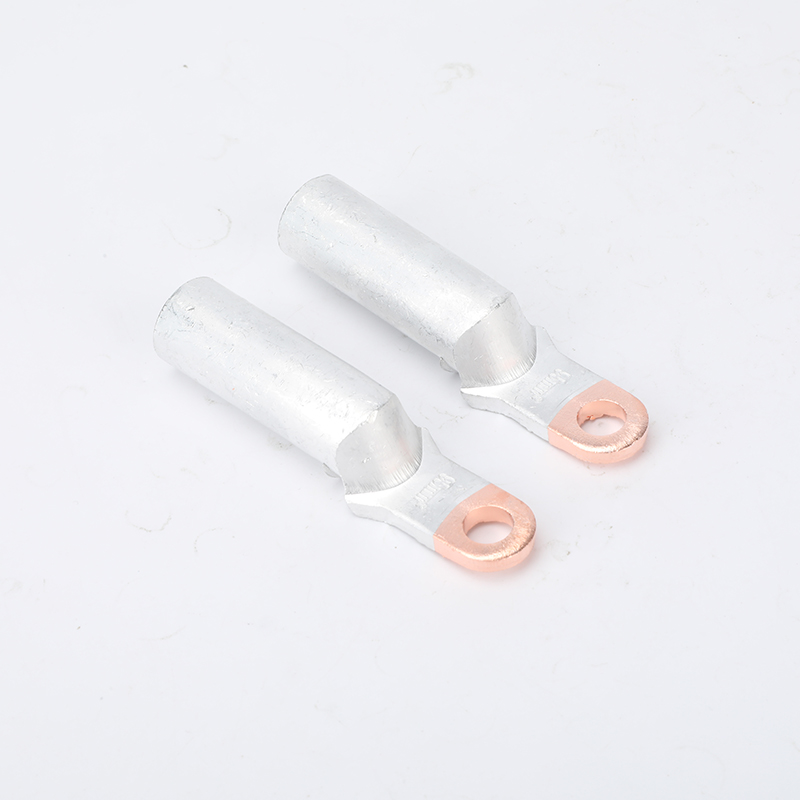

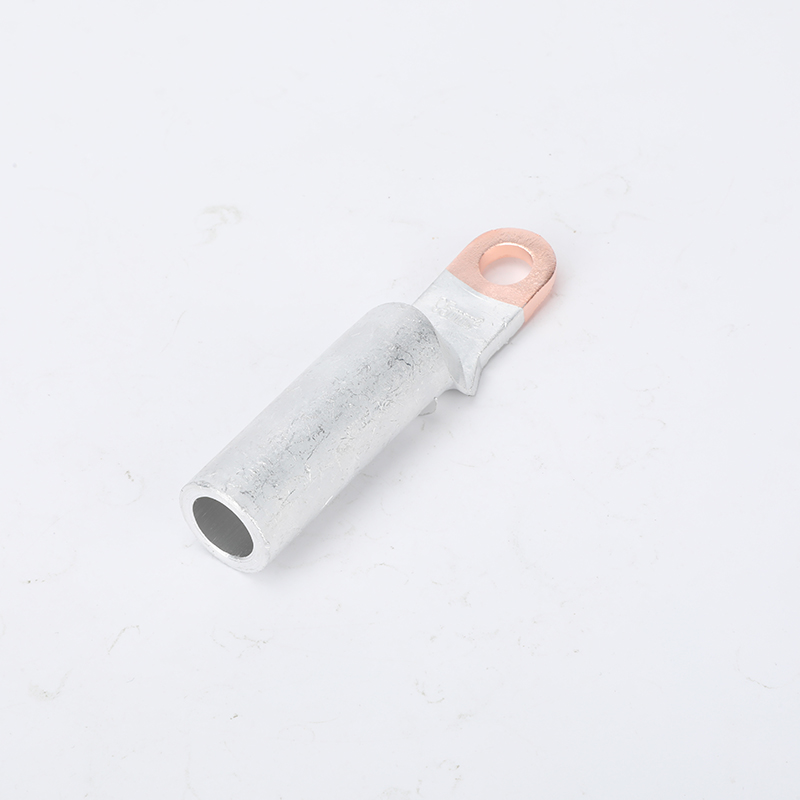

Small end copper aluminium terminal

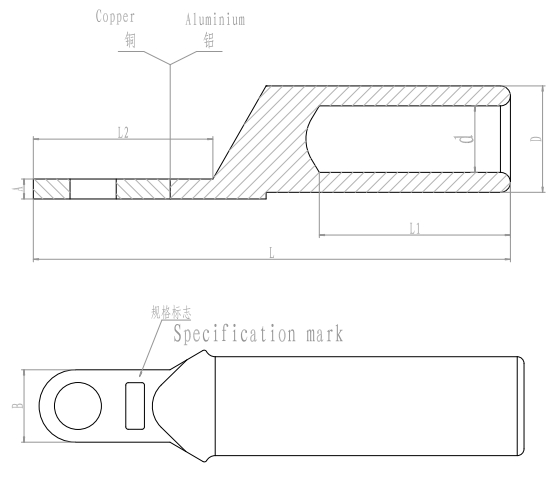

| Catalog No | Dimensions(mm) | |||||||
| Ø | D | d | L1 | L2 | L | B | A | |
| DTL-X-35 | 8.5 | 14 | 9 | 42 | 28 | 83 | 16 | 3 |
| DTL-X-50 | 8.5 | 16 | 10.5 | 47 | 28 | 90 | 16 | 3.2 |
| DTL-X-70 | 8.5 | 18 | 11 | 47 | 28 | 93 | 16 | 3.8 |
| DTL-X-95 | 8.5 | 20 | 13.8 | 5 | 28 | 97 | 16 | 4.6 |
| DTL-X-120 | 10.5 | 22 | 15 | 52 | 35 | 102 | 16 | 4.8 |
| DTL-X-150 | 10.1 | 25 | 17 | 56 | 35 | 113 | 18 | 5.5 |
| DTL-X-185 | 10.1 | 27 | 18.5 | 58 | 35 | 117 | 18 | 6 |
| DTL-X-240 | 10.1 | 30 | 21.5 | 6 | 35 | 125 | 18 | 6.8 |
| DTL-X-300 | 12.5 | 32 | 23.5 | 65 | 35 | 130 | 22 | 7 |
