JTL bimetal Copper-aluminum connecting clamp
Material：Copper Aluminum
MOQ:1000pcs

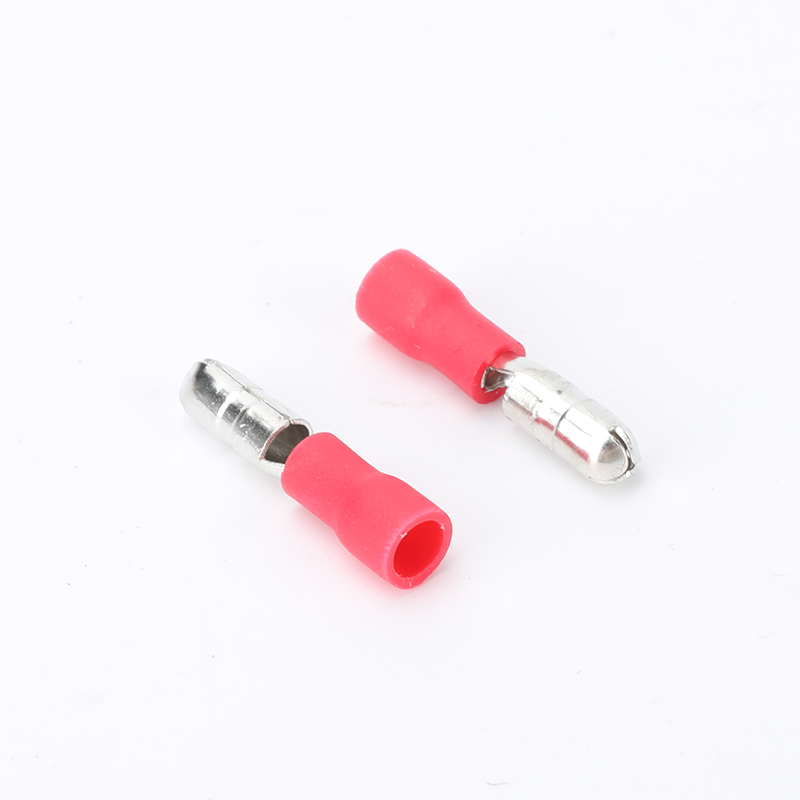

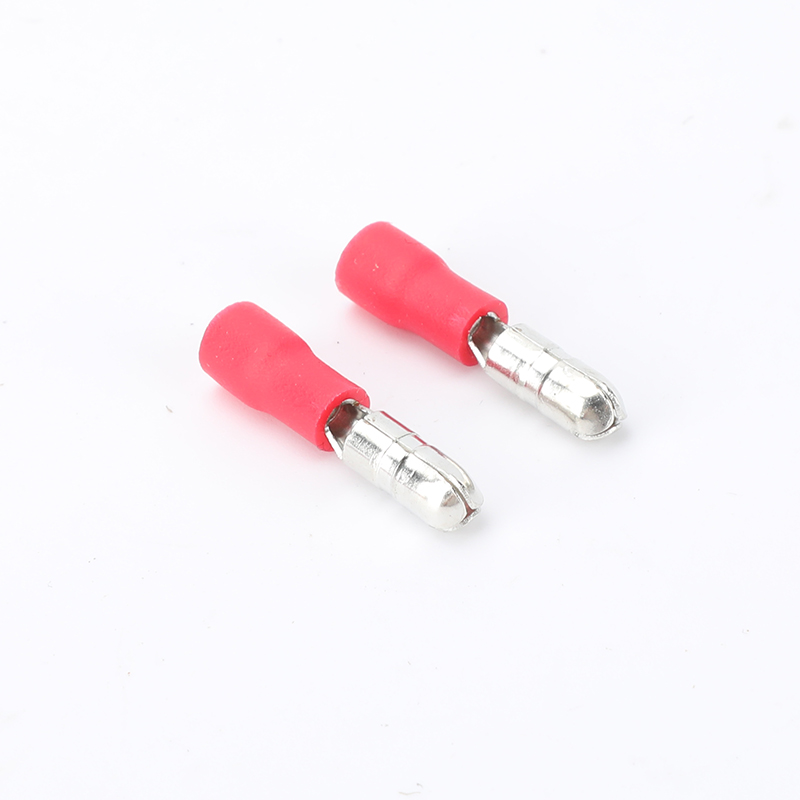

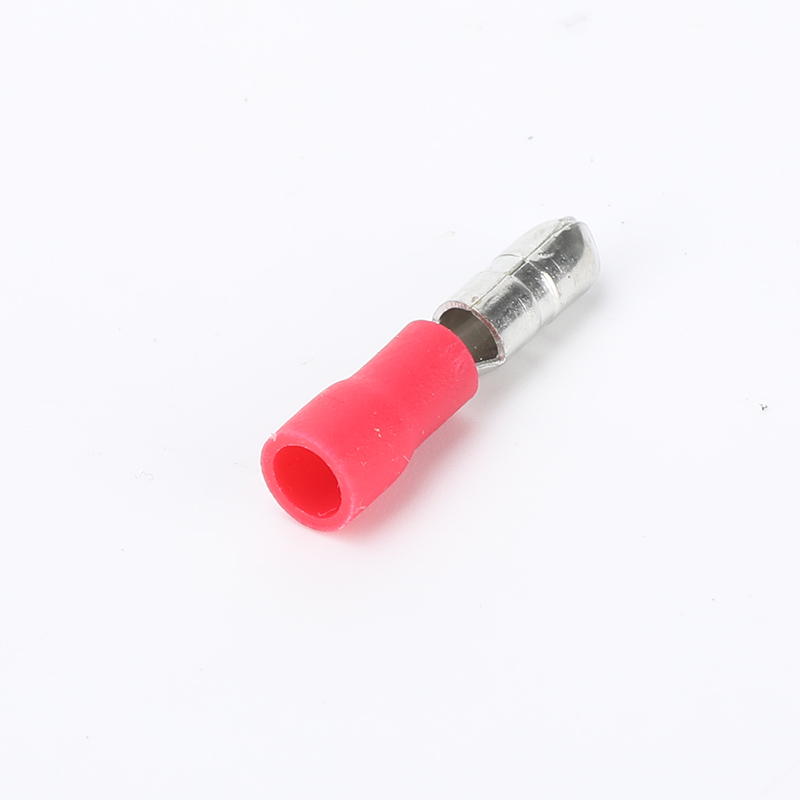

Product Name:MPD Pre-Insulated Bullet Connectors
Material: Copper/Brass;PVC
Surface coating: Tin plating
Applicable Conductor Cross-Section: 0.5~6 mm²
Rated Current: 10~24 A
Operating Temperature: -10°C ~ 75°C
Installation Method: Crimping
Reference Standard: GB/T 14315;IEC 61984
Material: Brass Tin PVC
OEM: Available
Sample: Available
Payment: T/T
Place of Origin :China
Supply Ability:5000 piece per Month
Reference standard：IEC 61238-1 GB/T14315-2008

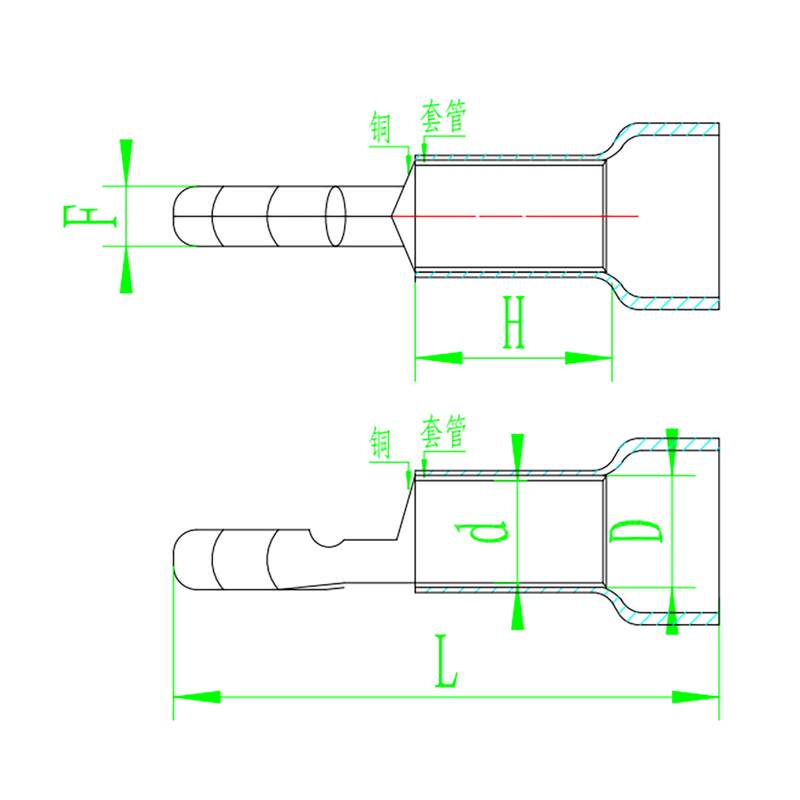

| Catalog No |
Dimensions(mm) | Color | ||||
| D | B | d | H | L | ||
| MPD1.25-156 | 4.0 | 11.0 | 1.7 | 10.0 | 21.0 | Red |
| MPD1.25-176 | 4.5 | 14.0 | 1.7 | 10.0 | 24.0 | |
| MPD2-156 | 4.0 | 11.0 | 2.3 | 10.0 | 21.0 | Blue |
| MPD2-176 | 4.5 | 14.0 | 2.3 | 10.0 | 24.0 | |
| MPD2-195 | 5.0 | 11.0 | 2.3 | 10.0 | 21.0 | |
| MPD5.5-195 | 5.0 | 12.0 | 3.4 | 13.0 | 25.0 | Yellow |
