For electrical installations exposed to moisture, salt air, or temperature extremes, unreliable connections can lead to costly downtime. A tinned copper terminal cable lug provides a secure, corrosion-resistant termination point for multi-stranded power cables, delivering consistent conductivity where bare copper connections fail. Whether you’re wiring solar arrays, industrial machinery, or marine systems, understanding how tinned copper lugs work—and why they outperform untreated alternatives—can make the difference between a system that lasts decades and one that requires constant maintenance.

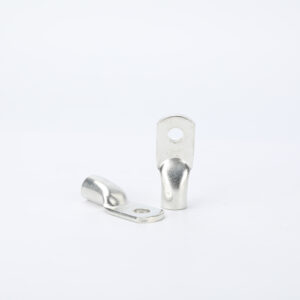

A tinned copper terminal cable lug is a solderless crimp connector used to terminate the end of a copper cable, allowing it to be securely bolted to an electrical device such as a battery terminal, busbar, generator, or UPS. The lug features a tubular barrel that accepts the stripped end of a cable and a palm (or eyelet) with a hole that fits over a stud or bolt.
The key differentiator is the tin coating. While the base material is high-conductivity electrolytic copper, typically 99.9% pure, the lug undergoes electroplating or hot-dip tinning to apply a thin protective layer of tin, usually 3 to 12 microns thick. This coating acts as a sacrificial barrier that prevents the copper underneath from oxidizing when exposed to air, moisture, salt spray, or chemicals.
Tinned copper lugs come in various configurations: ring terminals (for bolted connections), fork/spade terminals (for quick disconnect), pin terminals, and straight or angled tubular lugs for heavy-duty power applications. For professional installations, ring-type lugs with inspection holes are particularly valued—the hole allows electricians to visually confirm that the conductor is fully inserted before crimping.
The working principle of a tinned copper lug relies on two fundamental mechanisms: mechanical compression and bolted fastening. These two actions combine to create a low-resistance, gas-tight electrical joint.
Step 1: Cable Preparation and Insertion
The process begins by stripping the insulation from the end of a multi-stranded copper cable to a precise length—exactly matching the depth of the lug’s barrel. The prepared conductor is then inserted fully into the barrel. Many quality lugs feature a bell-mouth entry that guides fine-stranded wires smoothly into the barrel without splaying or damaging the strands.
Step 2: Crimping — The Solderless Connection
Crimping compresses the lug’s barrel around the conductor strands using a specialized tool—typically a heavy-duty ratchet crimper or a hydraulic crimping tool. As the tool applies radial compression, the copper barrel deforms plastically around the wire strands, creating a gas-tight mechanical and electrical joint. A gas-tight joint means no air remains between the conductor and the barrel, eliminating the possibility of oxidation forming at the connection interface.
The ratchet mechanism on quality crimping tools remains locked until the full crimp cycle completes, preventing partial or incomplete crimps that could loosen over time. For tubular terminals above 16mm², hexagonal dies are typically recommended to achieve uniform compression around the entire circumference of the barrel.
Step 3: Bolted Fastening to Equipment
Once crimped, the lug’s palm is placed over the stud or bolt terminal of the target device—such as a battery post, busbar, or circuit breaker terminal—and secured with a nut. The palm features a precisely sized hole that matches the stud diameter (e.g., M6, M8, M10, or imperial equivalents). When tightened to the specified torque, the lug’s palm is pressed firmly against the equipment’s terminal face, establishing a low-resistance metal-to-metal contact path for current flow.
With nearly 30 years of metal processing expertise, Envi Electric manufactures high-quality tinned copper cable lugs and power fittings under strict quality control. Every product—from cable accessories to line fittings—is inspected and tested to meet rigorous standards.
We control the entire process: raw copper selection, precision stamping, tin plating, and final assembly. This ensures consistent conductivity, corrosion resistance, and reliable crimping performance for power transmission, distribution, and renewable energy systems.
Beyond products, we provide technical support, custom solutions, and responsive service. Choose Envi Electric for dependable connections and a partner who solves your challenges. Visit Our Web to learn more.
Q: Are tinned copper cable lugs better than bare copper?
A: Yes – the tin coating protects against oxidation and corrosion, making them ideal for humid, coastal, and outdoor installations where bare copper would quickly degrade.–
Q: Can I solder a tinned copper lug instead of crimping?
A: Yes, the tin finish also improves solderability; however, professional installations strongly prefer crimping as it provides a more consistent, vibration-resistant connection without heat-related risks.–
Q: What crimping tool works best for tinned copper lugs?
A: A heavy-duty ratchet or hydraulic crimper with interchangeable dies matched to the lug size ensures optimal compression and low resistance.–
Q: How do I know if a crimp is correctly done?
A: Check the inspection hole – you should see the copper strands fully inserted. Perform a pull test; the lug should not slide off. Also verify no gaps exist between the barrel and cable insulation.–
A tinned copper terminal cable lug is a simple yet vital device: it converts a flexible stranded cable into a rigid, bolt-ready connection while resisting corrosion and maintaining high conductivity through proper crimping. For electrical professionals working with power distribution, renewable energy systems, or heavy industrial machinery, choosing quality tinned lugs is a decision that pays back in safety and longevity.
